What Makes the Visby-Class Corvette One of the Most Unique Warships Ever Built

The Visby-class corvette is one of those ships that sounds almost too good to be true. Five vessels, each built from carbon fibre composite instead of steel, capable of hitting 35 knots, and so radar-evasive that at distance one can appear as small as a fishing boat. Sweden launched the first of them in 2000, and it remains the world's first operational stealth corvette. If you want to understand what modern littoral warfare looks like, this is where you start.

In this post I'll cover everything that makes the Visby-class corvette genuinely different from other warships: the hull materials, the stealth philosophy, the propulsion, the weapons, and the mid-life upgrades that are adding Sea Ceptor air defence missiles starting in 2026. I'll also touch on why Sweden ultimately decided not to build a Generation 2 version, and what comes next.

What the Visby-Class Corvette Actually Is

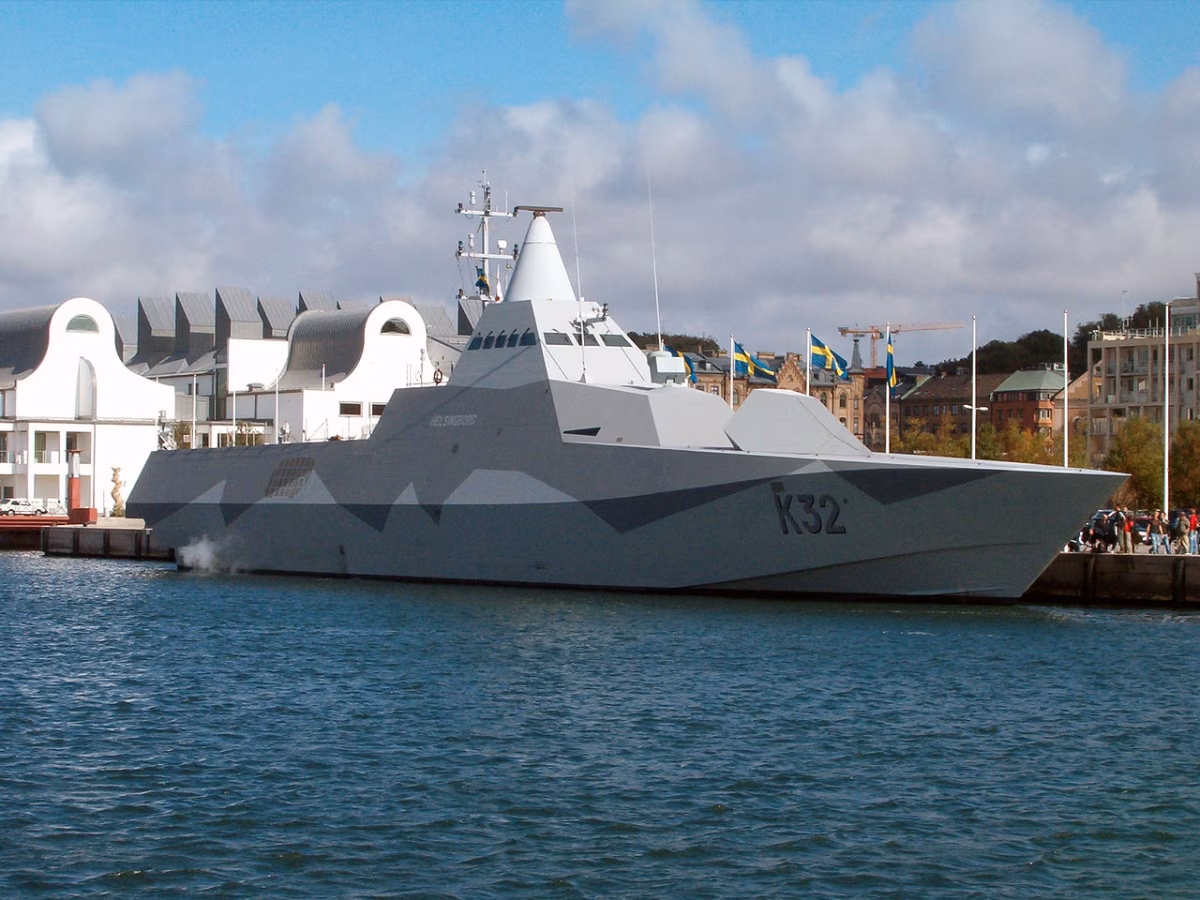

The Visby class is a group of five stealth corvettes operated by the Swedish Navy. They were designed by the Swedish Defence Materiel Administration (FMV) and built by Saab Kockums AB at the yard in Karlskrona. The five ships are HSwMS Visby (K31), Helsingborg (K32), Härnösand (K33), Nyköping (K34), and Karlstad (K35). A sixth hull was planned but cancelled. The lead ship was launched in June 2000, and the fifth was finally delivered in 2015 after a famously drawn-out production process riddled with delays.

The class replaced the older Göteborg- and Stockholm-class corvettes and was designed specifically for operations in the Baltic Sea: shallow water, complex seabed topography, dense archipelago terrain, and close proximity to potential threats. That environment shaped almost every design decision, from the hull shape to the propulsion choice to the weapons fit.

The Stealth Design That Changed Naval Architecture

This is the part that genuinely sets the Visby apart. The hull uses a sandwich structure: a PVC core wrapped in carbon fibre and vinyl laminate. There is no steel. This is not just an engineering curiosity. It produces several meaningful tactical advantages simultaneously. Carbon fibre composite is non-magnetic, which reduces the ship's magnetic signature significantly. It also provides thermal insulation, cutting the infrared footprint. And the angular, tumblehome hull form (the sides angle inward as they rise) reflects radar signals away from the transmitter rather than back toward it.

At sufficient distance, a Visby-class corvette can appear on radar as something no larger than a fishing vessel, or not appear at all.

Saab describes the Visby's stealth philosophy as integrated across the full signature spectrum: radar, infrared, acoustic, and magnetic. The ship is also at least 50% lighter than a steel vessel of the same dimensions, which has a direct effect on speed and fuel efficiency. And the composite material outperforms steel for fatigue resistance and corrosion, reducing long-term maintenance costs substantially over the ship's service life.

Speed, Propulsion, and Why Waterjets Matter

The Visby uses a Combined Diesel or Gas (CODOG) turbine arrangement. At lower speeds, two diesel engines take over, sustaining a cruise speed around 15 knots. When you need to move fast, a gas turbine kicks in, pushing the ship past 35 knots. The power is transferred through two gearboxes to two waterjet propulsors rather than conventional propellers.

Waterjets matter for a few reasons in a coastal warfare context. They give better maneuverability in tight channels and archipelago waters than propeller-driven ships. They are also quieter at high speed than conventional propellers, which matters for both acoustic signature and submarine detection work. And because the composite hull is so much lighter than an equivalent steel design, you get higher speed for the same installed power, which is a real operational edge when the mission is strike fast, relocate immediately, deny the enemy a second chance.

Weapons, Sensors, and What the Visby Can Actually Do

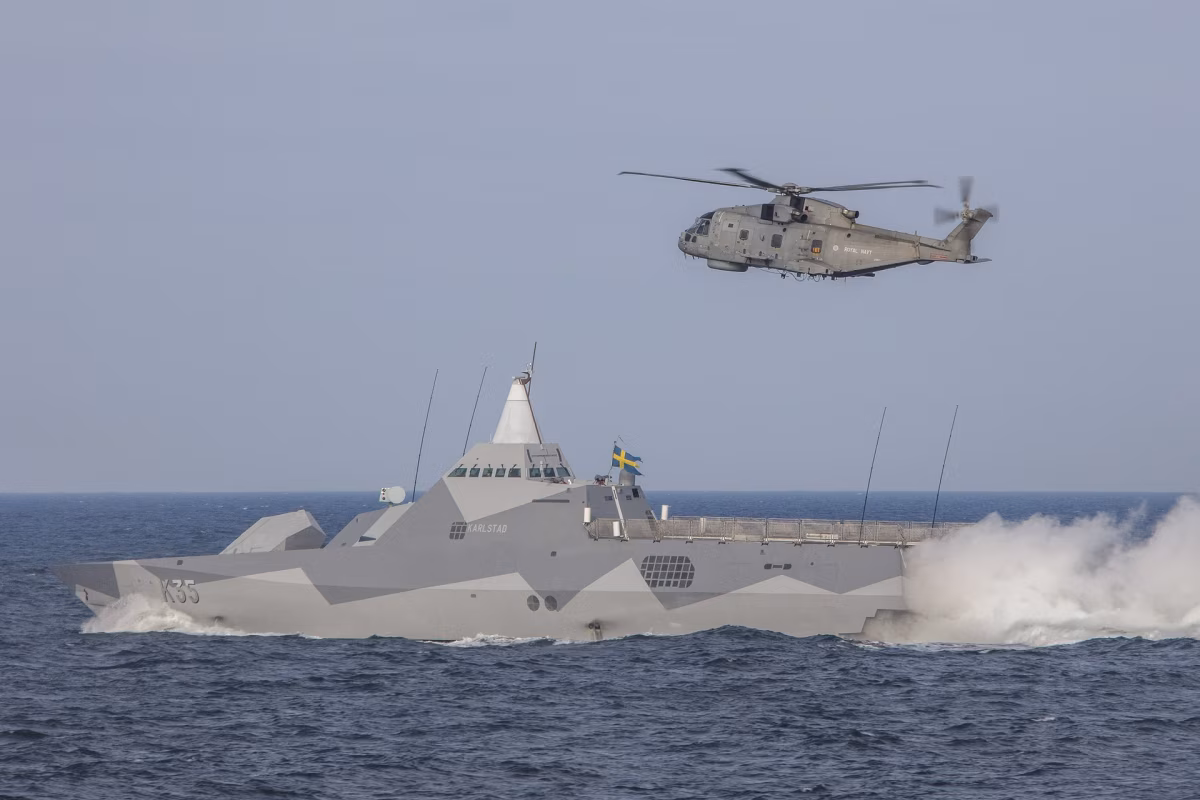

The first four ships in the class were configured primarily for mine countermeasures and anti-submarine warfare (ASW). The fifth, Karlstad (K35), is oriented more toward anti-surface warfare. In practice the class is genuinely multi-mission, and what the ships can do depends on which mission modules are fitted.

The core weapons fit includes a Bofors 57mm Mk3 gun forward, which was actually the only weapon system fully integrated and test-fired during the early delivery phase. Anti-submarine capability comes from three fixed 400mm torpedo tubes firing Saab Tp 45 homing torpedoes, plus 127mm rocket-powered grenade launchers and depth charges. The Torped 47 lightweight torpedo (delivery began in 2022) is designed specifically for the Baltic Sea environment, optimised for shallow water and complex seabed conditions. The ships can also deploy remotely operated vehicles (ROVs) for minehunting and mine neutralisation.

The sensor suite is more capable than the ship's modest size might suggest. It includes the Ceros 200 fire control radar, a Condor CS-3701 tactical radar surveillance system, an Ericsson Sea Giraffe ABM 3D radar, hull-mounted sonar, a towed sonar array, and variable depth sonar aft. The combat information centre is positioned amidships under the bridge superstructure. Electronic countermeasures include the Rheinmetall MASS (Multi-Ammunition Softkill System) decoy launcher and a radar warning system on the mast.

If you want a deeper comparison of ASW sensor systems used on similar European corvettes, there is a good body of writing on that topic worth exploring. If you have found this post useful and want to go further on Baltic Sea naval technology, subscribing to a focused naval affairs newsletter is probably the most efficient way to stay current.

The Mid-Life Upgrade: Sea Ceptor Air Defence Arrives in 2026

One long-standing weakness of the Visby class was air defence. Surface-to-air missiles were included in the original design brief but cancelled in 2008 as part of Swedish defence budget rationalisation. That gap is now being addressed. In May 2025, Saab secured a contract from FMV worth approximately SEK 1.6 billion (around $167 million) to integrate MBDA's Sea Ceptor system onto all five corvettes. Installation is scheduled to begin in early 2026.

Sea Ceptor uses the CAMM (Common Anti-Air Modular Missile) and is already in service with the Royal Navy's Type 23 frigates and Type 26 frigates. It provides a significantly larger area of coverage and the ability to engage air threats at longer ranges than anything the Visby carried before. For Sweden, which joined NATO in 2024, the upgrade also matters strategically: the corvettes will now be capable of contributing to NATO integrated air and missile defence in the Baltic region.

A ship that was once invisible to radar can now also shoot back at threats it couldn't previously engage. That's a meaningful step change in what the class can offer to NATO.

Why Sweden Cancelled Visby Generation 2

The original plan after the Gen 1 class was to build a Visby Generation 2: a larger, more capable follow-on corvette. Early recommendations called for longer-range surface-to-air missiles, better interoperability with NATO's standing maritime groups, and modifications for the Joint Expeditionary Force. The Gen 2 concept carried over the composite hull approach but estimated displacement at over 1,000 tonnes, with potential vertical launch systems for air defence, improved ASW systems including towed array sonar, and extended endurance for operations beyond the Baltic.

Then February 2023 changed the calculation. Following Russia's invasion of Ukraine and Sweden's accelerating path toward NATO membership, the Swedish government decided the Visby Gen 2 concept was too incremental. What was needed was not a larger version of the same ship, but a fundamentally more capable platform that could operate across a wider threat environment. The Gen 2 programme was cancelled in favour of a clean-sheet design: the Luleå class.

What Comes Next: The Luleå Class

As of mid-2023, Sweden's Ministry of Defence began sharing details of the Luleå class, the intended successor to the Visby. In 2024, Babcock and Saab announced a collaboration on the design. The Luleå class is intended to be larger and more capable than anything in the current Swedish corvette fleet, designed with NATO interoperability as a core requirement rather than an afterthought.

The Visby-class corvettes themselves are not going anywhere soon. The Sea Ceptor upgrade, combined with the Torped 47 integration completed in recent years, means they remain operationally relevant warships. For a fleet of just five hulls, the Swedish Navy has invested carefully in keeping them current while the next generation comes together.

Why the Visby Still Matters

The Visby-class corvette matters for a few reasons that go beyond Swedish naval history. It was the first stealth warship of its kind to actually enter service, not just as a prototype but as a deployable operational fleet. Its composite hull construction influenced naval architects across Europe and beyond. And it demonstrated that a relatively small navy can punch well above its weight by making intelligent, technology-led design choices rather than just building bigger ships.

What I find genuinely interesting about the Visby class is how purpose-built it is. Almost every design decision traces back to one operational environment: the Baltic Sea. The shallow draught, the waterjet propulsion for archipelago maneuverability, the extreme stealth optimisation, the modular weapons fit. This is not a ship trying to do everything globally. It is a ship trying to do specific things very well in a defined theatre. That specificity is also what makes it obsolete in its current form as Sweden's strategic posture changes, which is why the Luleå class exists.

If you want to go deeper on the Visby and the broader evolution of Scandinavian naval design, look up Saab Kockums' technical papers on composite hull construction, or Jane's Fighting Ships for a fuller specification history across all five hulls. And if this kind of naval technology writing is useful to you, consider sharing it with others who follow Baltic security or modern warship design.
