The 9K35 Strela-10 entered service with the Soviet Army in May 1976. That was fifty years ago. And yet, as of 2026, it is still being used in active combat in Ukraine, still being supplied with freshly produced missiles, and still showing up in the inventories of more than 30 countries. That is a remarkable run for any weapons system, and the story of how it got here is genuinely interesting if you care about how military technology actually evolves.
This guide covers what the Strela-10 is, how it works, how it has changed over the decades, and what makes it still relevant in an era of sophisticated drones and electronic warfare.
What Is the 9K35 Strela-10?
The 9K35 Strela-10 (NATO reporting name: SA-13 "Gopher") is a self-propelled, short-range surface-to-air missile system. Its job is protecting ground forces from low-flying threats: helicopters, attack aircraft, and more recently, drones. It does not use radar to guide missiles to their targets. Instead, it relies on optical and infrared guidance, which makes it far less vulnerable to radar jamming than many of its contemporaries.

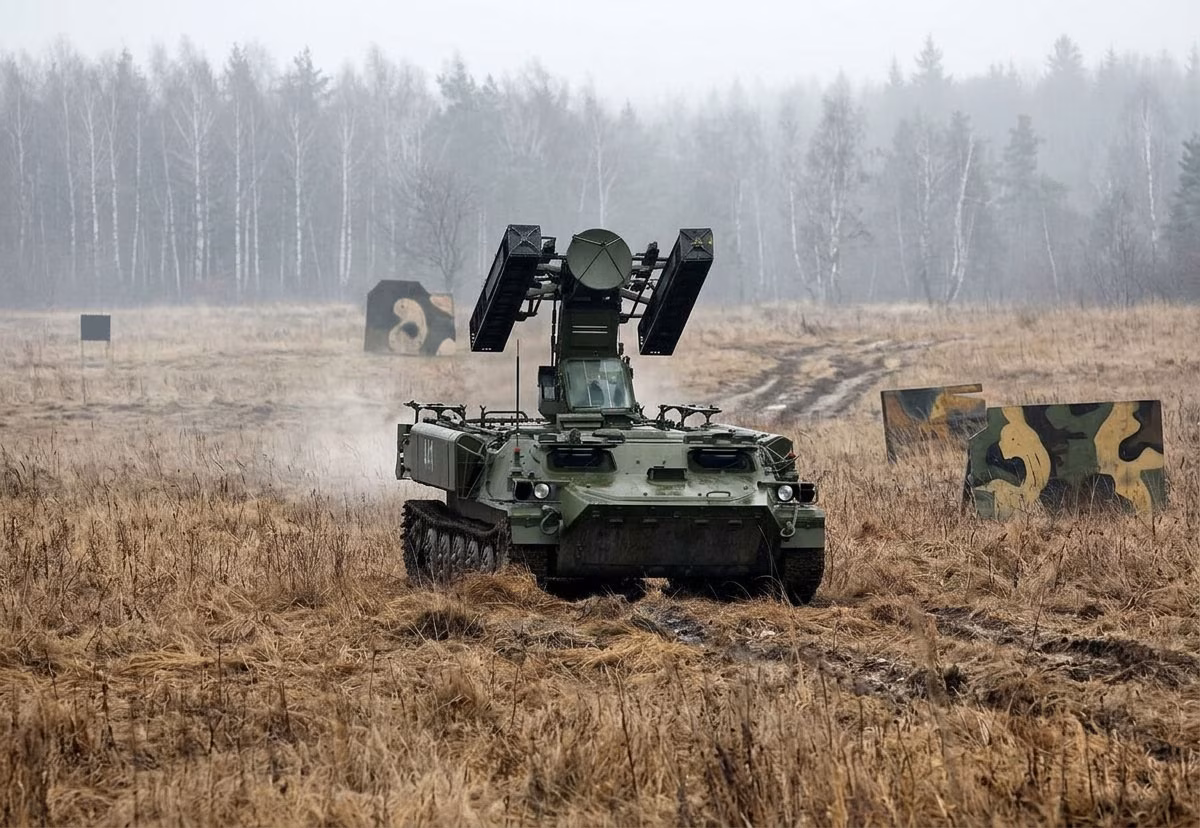

The system is built around the MT-LB tracked chassis, a Soviet utility carrier that gives the Strela-10 full cross-country mobility and, in some variants, the ability to cross rivers without bridging equipment. The launcher sits in the rear, carrying four ready-to-fire missiles in sealed containers. Another eight reload missiles are stored inside the vehicle. A trained crew can reload the launcher in roughly three minutes.
How the System Works
The Strela-10 is visually aimed. The gunner sits inside the launcher turret, observes the airspace through a forward-facing sight, and uses electro-optical tracking equipment to lock onto targets. There is no radar dish pointing at the sky. The absence of radar is a deliberate design choice: it makes the system immune to radar-warning receivers and difficult to suppress with anti-radiation missiles.
Once a target is identified, the gunner uses the zone evaluation equipment (part of the 9S86 radar or the passive detection system, depending on the variant) to assess range and calculate the correct launch moment. The missile is then fired, and its seeker head takes over autonomously, homing onto the target's heat signature or optical contrast against the sky background.
The M2 variant added a target designation data link, meaning that air defense command posts could pass targeting information directly to the vehicle rather than relying entirely on the crew to spot threats visually. That integration into the wider Soviet air defense network made the system significantly more effective in a coordinated engagement environment.
The 9M37 Missile: Original Specs

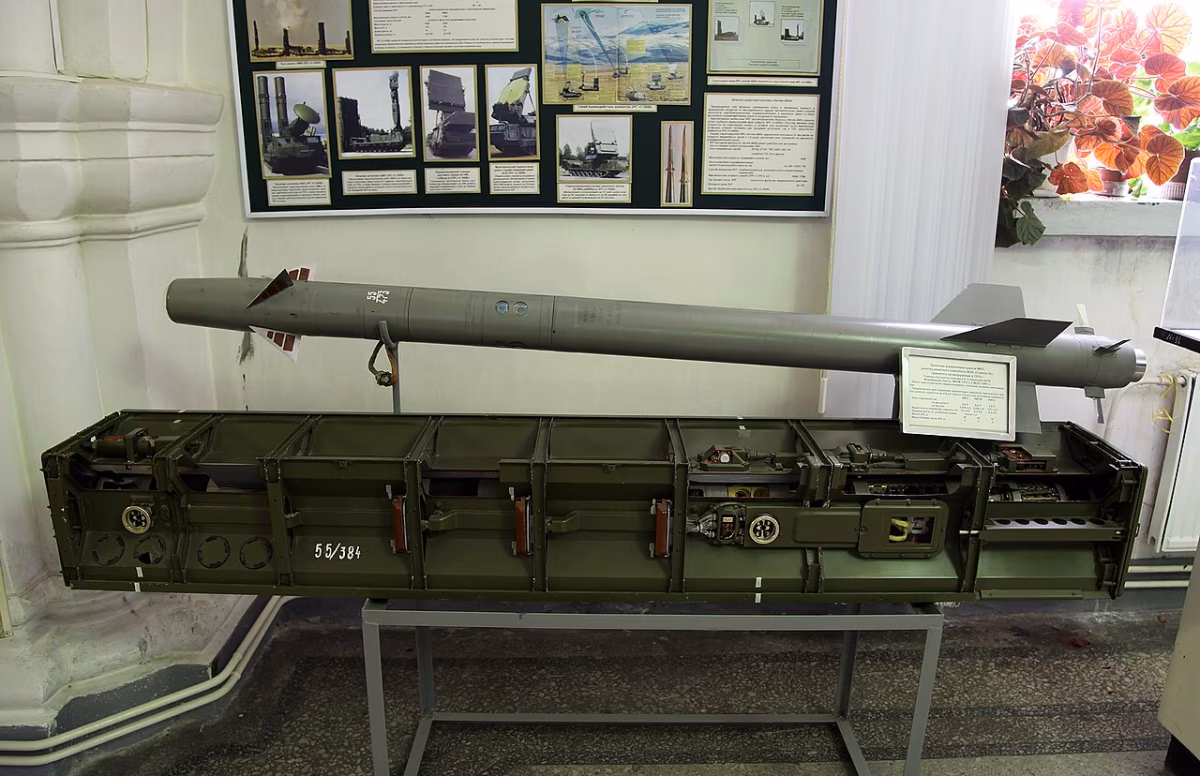

The original missile used by the Strela-10 was the 9M37. At 2.19 meters long and 120 mm in diameter, it is a compact weapon. It weighs 40 kilograms and carries a 3 to 3.5 kilogram fragmentation warhead. The motor is solid fuel, giving the missile a top speed approaching Mach 2.
The engagement envelope is defined by an operational range of 800 to 5,000 meters and an altitude band of 10 to 3,500 meters. That profile is built specifically for the low-altitude threat: a helicopter popping up from behind a treeline, a ground-attack aircraft making a fast pass at 200 meters, or a drone cruising at rooftop height. The 9M37 uses a dual-mode seeker combining infrared homing with photocontrast tracking, meaning it can home on heat or on the visual contrast of a flying object against the sky. In the original design, the photocontrast channel was considered the backup option.
What the 9M37 could not do well was handle countermeasures. Flares could decoy the infrared seeker, and fast jets flying in certain aspects were difficult to engage. Those limitations drove almost every subsequent upgrade to the system.
Every Major Variant, Explained
The Strela-10 family went through several distinct generations, each addressing specific shortcomings in the previous version.
| Designation | Year Accepted | Key Change | Primary Missile |
|---|---|---|---|
| 9K35 Strela-10SV | 1976 | Baseline system | 9M37 |
| 9K35M Strela-10M | 1979 | Improved IR seeker; better autopilot | 9M37M |
| 9K35M2 Strela-10M2 | 1981 | Added target designation data link; floats for amphibious use | 9M37M |
| 9K35M3 Strela-10M3 | Late 1980s | New 9M333 missile with upgraded electronics | 9M333 |
| 9K35M4 Strela-10M4 | Mid-2000s | Full day/night electro-optical system; auto target tracking | 9M333 |
| 9K35MN Strela-10MN | 2015 | Modern electronics suite; latest thermal imaging | 9M333 |
The progression tells a consistent story. Each variant focused on one of three areas: improving the missile seeker to resist countermeasures, improving the crew's ability to find and track targets (especially at night), and improving integration with the broader air defense command network. The chassis and basic launcher architecture stayed remarkably consistent throughout.
The 9M333: A Missile That Changed Everything
If one upgrade defines the modern relevance of the Strela-10, it is the 9M333 missile. Where the original 9M37 relied primarily on infrared homing with photocontrast as a fallback, the 9M333 introduced a triple-channel seeker: infrared, photocontrast, and a third channel specifically designed to reject jamming and countermeasures. This is what makes the 9M333 significantly harder to decoy with flares than its predecessors.
The 9M333 is 2.23 meters long, weighs 42 kilograms, and carries a 5-kilogram expanding-rod warhead, considerably heavier than the original 3-kilogram fragmentation charge. It also added an eight-ray laser proximity fuse, which improves the probability of a warhead detonation on near-misses against small, fast targets. That matters a lot when the target is a small UAV with a radar cross-section barely the size of a bird.
The missile entered serial production in 2020 under Kalashnikov Concern. As of early 2026, fresh batches continue to be delivered to Russian forces. The fact that a missile family designed in the 1980s is being actively manufactured and shipped to a hot war in 2026 says something about both the system's operational utility and Russia's current production priorities.
A triple-channel seeker and an eight-ray laser proximity fuse are the two upgrades that turned a Cold War air defense relic into a system capable of engaging modern drones.
If you want to understand how the Strela-10 keeps getting work, the 9M333 is the main answer. It is compatible with all major variants of the launcher, meaning older vehicles can fire the newest missiles without a structural overhaul. That backward compatibility was built into the system's design from the start, and it is a large part of why the platform has lasted this long.
Combat History from Angola to Desert Storm
The Strela-10 first saw action in Angola in the late 1970s, where Soviet-aligned forces used it as part of the broader air defense network during the civil war. It appeared again during Operation Desert Storm in 1991, where Iraqi Strela-10 systems had limited success against coalition aircraft flying at higher altitudes than the system was designed to handle. The Kosovo War in 1998 and 1999 added another chapter to its combat record, again with mixed results against faster jets.
Read Also
The Operation Desert Storm air campaign lasted 38 days and reshaped how the world thinks about air power. This breakdown covers every phase, the key aircraft, the technology that changed warfare, and what the GAO's own post-war audit revealed that the Pentagon didn't want to talk about.
The honest assessment of the Strela-10's combat history against fixed-wing aircraft is that it has always performed better against helicopters and slower platforms than against high-performance jets. That was never really a surprise: the system was designed and optimized for exactly that threat. The problem came when operators tried to use it as a general-purpose air defense tool in environments where it was outranged or outmaneuvered.
Where the system consistently delivered results was in denying the low-altitude space. Forcing enemy aircraft to fly higher to avoid the Strela-10 is still a tactical success, even if the missile never fires. That is the logic of layered air defense, and the Strela-10 was always intended to fill one specific layer.
Strela-10 in the Ukraine War
Ukraine is where the Strela-10 found perhaps its most relevant modern role, and from both sides of the conflict. Both Russian and Ukrainian forces entered the war operating the system, and both have continued using it in roles that the original Soviet designers almost certainly did not envision.
The most significant shift is its use against drones. In August 2014, Ukrainian troops reportedly shot down a Russian Orlan-10 reconnaissance UAV using a Strela-10. That engagement pointed to something important: a system designed in the 1960s and accepted into service in 1976 can engage modern battlefield UAVs, provided the right missile is available. The Orlan-10 is a slow, unarmed drone operating at low altitude. It is exactly the kind of target the Strela-10's engagement envelope was built around, even if nobody was thinking about surveillance drones when they drew up the requirements.
Russian forces have used the 9M333 missile in Ukraine, confirmed in reporting from September 2023. The triple-channel seeker's resistance to decoys and its improved proximity fuse against small targets makes it reasonably well suited for the drone-saturated environment of that conflict. A Russian Strela-10M guarding Snake Island was destroyed by a Bayraktar TB2 in April 2022, illustrating the system's vulnerability to loitering munitions and armed drones it cannot engage fast enough.
A system designed in 1969 to kill helicopters is now being used to shoot down reconnaissance drones. The threat changed. The platform adapted.
The Ukraine war has produced a complicated picture of the Strela-10: capable enough to be kept on the front line by both sides, vulnerable enough to be destroyed when it cannot respond fast enough to airborne threats with standoff capability. That tension is a fair summary of most legacy air defense systems operating in a modern contested environment.
Why It Has Lasted 50 Years
The answer is not just "because Russia couldn't afford to replace it," though that is part of the story. The more interesting explanation is that the original design was genuinely good at what it set out to do, and the architecture was built to accept upgrades without requiring a ground-up redesign.
The MT-LB chassis was chosen partly for its versatility: it is a proven platform used across the Soviet and Russian military for dozens of applications, meaning spare parts and crew training were never a constraint. The decision to use electro-optical guidance rather than radar made the system immune to a class of electronic warfare that has neutralized many radar-guided SAMs. And the decision to build backward missile compatibility into the launcher from day one meant that seeker improvements could be fielded without replacing the vehicles.
In my view, the most underappreciated factor is institutional knowledge. The Strela-10 has been in service long enough that multiple generations of operators have trained on it, doctrine has been developed around it, and its limitations are well understood. That familiarity matters in combat. A crew that knows exactly what their system can and cannot do is more effective than a crew still learning a replacement system's quirks.
What Comes Next: The Sosna Replacement
The planned successor to the Strela-10 is the Sosna (9K333), developed by the same design bureau. The Sosna uses the Sosna-R 9M337 beam-rider missile, which has a maximum range of 10 kilometers and a ceiling of 5 kilometers, roughly doubling the Strela-10's engagement envelope in both dimensions. It is also intended to be more capable against the kinds of small, fast, low-altitude targets that have become the dominant threat in recent conflicts.
Whether and when the Sosna actually replaces the Strela-10 in meaningful numbers is a separate question from whether it is a better system. Russia's defense industrial production is under significant strain in 2026. The fact that Kalashnikov is still shipping new 9M333 missiles for Strela-10 systems suggests that the replacement timeline is not imminent, at least in practical terms.
The Strela-10 will almost certainly remain in service with Russia and dozens of other operators for years to come, not because it is the best available option, but because it is proven, understood, available, and still capable enough to justify keeping it in the field. That is usually how long-lived weapons systems end their careers: not with a decisive replacement, but with a slow fade as attrition and newer procurement gradually shift the balance.
Read Also
Kalashnikov's Krona-E is a short-range surface-to-air missile system built around the growing drone threat. It carries two missile types, mounts on a BTR-82A chassis, and entered preliminary trials in April 2026. Here's a full breakdown of how it works and where it fits in Russia's air defense picture.
The Bottom Line on the 9K35 Strela-10
The 9K35 Strela-10 is a study in how thoughtful original design combined with consistent incremental upgrades can keep a weapons system relevant far beyond what anyone planned for. It entered service in 1976 as a solution to a specific problem: keeping Soviet tank columns safe from NATO helicopters. Fifty years later, it is engaging surveillance drones in Ukraine and being supplied with newly manufactured missiles.
That does not make it a perfect system. It has real limitations: a 5-kilometer maximum range, vulnerability to armed drones with standoff capability, and an operator-dependent target acquisition process that struggled against fast jets. But understanding those limitations is exactly what the system's long history makes possible. Operators know what it can do, and when to rely on something else.
If you are researching Russian or Soviet short-range air defense, the Strela-10 is an essential reference point. For a comprehensive overview of its missile variants and technical specifications, the Wikipedia entry on the 9K35 is a solid starting reference with cited sources you can follow up on.
