Russia's Krona-E short-range air defense system went from first public appearance to active preliminary trials in roughly 14 months. That's a fast development cycle for a missile system by any standard, and the timing isn't a coincidence. Kalashnikov Concern, which developed Krona-E, has said openly that operational experience dealing with drones during the conflict in Ukraine drove the concept. The system debuted publicly at IDEX 2025 in Abu Dhabi in February 2025. By April 13, 2026, Kalashnikov announced the start of preliminary field trials on a domestic Russian test range. What's actually being tested, and what does the Krona-E bring to the table?
This post breaks down the Krona-E's hardware, its two missile types, how it detects and tracks targets, and what role it's intended to fill in a layered air defense network. I'll also get into some of the honest criticism the system has attracted, because there's a real debate about whether it adds something genuinely new or largely repackages existing technology.
What the Krona-E Actually Is
The Krona-E is a short-range surface-to-air missile system built specifically to intercept medium-class unmanned aerial vehicles, cruise missiles, helicopters, and precision-guided munitions at low and very low altitudes. It's an export designation (the "E" stands for export), with the domestic version simply called Krona. Kalashnikov Concern is the developer, and the system is designed to protect critical infrastructure: government facilities, oil refineries, communication hubs, and strategic sites that face persistent drone attack risk.
The system is built around a modular architecture. At its core is a combat module, essentially a weapon turret, which can be mounted on a self-propelled chassis or installed as a stationary unit. The combat module integrates a combined electro-optical suite with a daylight camera and a thermal imaging channel. Target information can come from the vehicle's own sensors or from external sources like a detached radar unit or a higher-level command post.

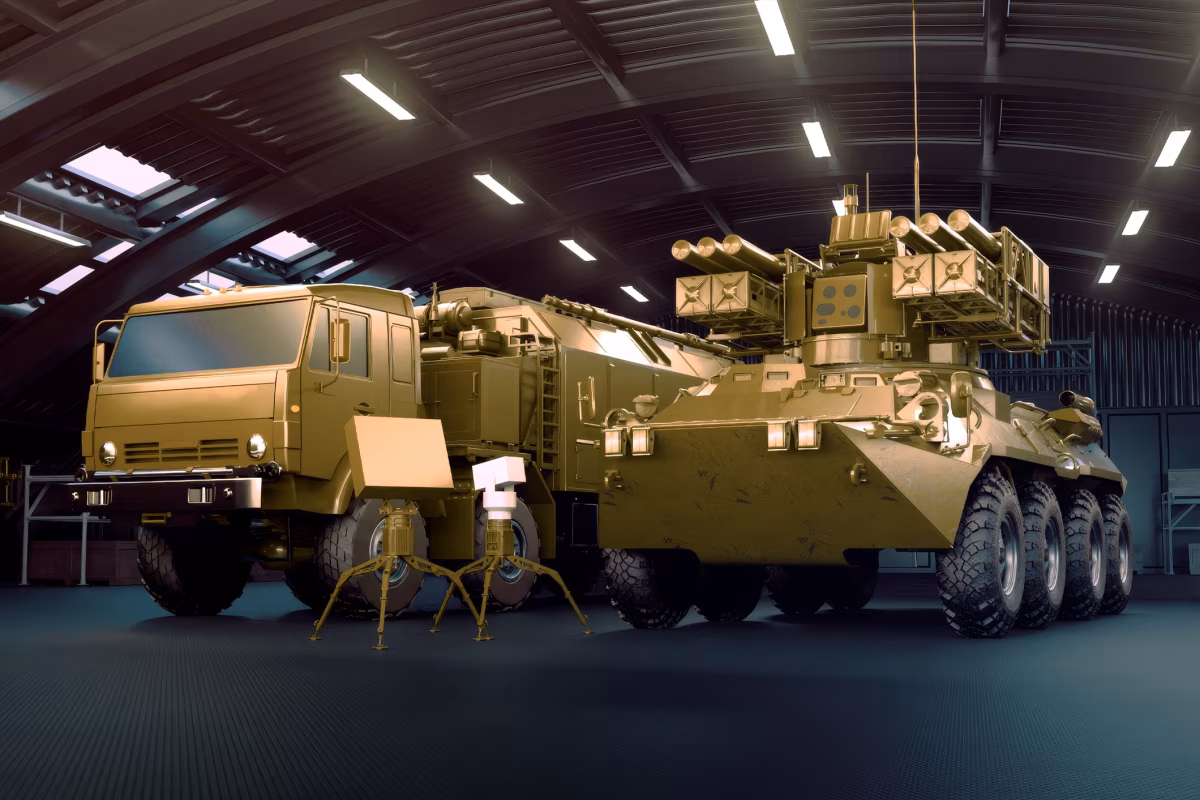

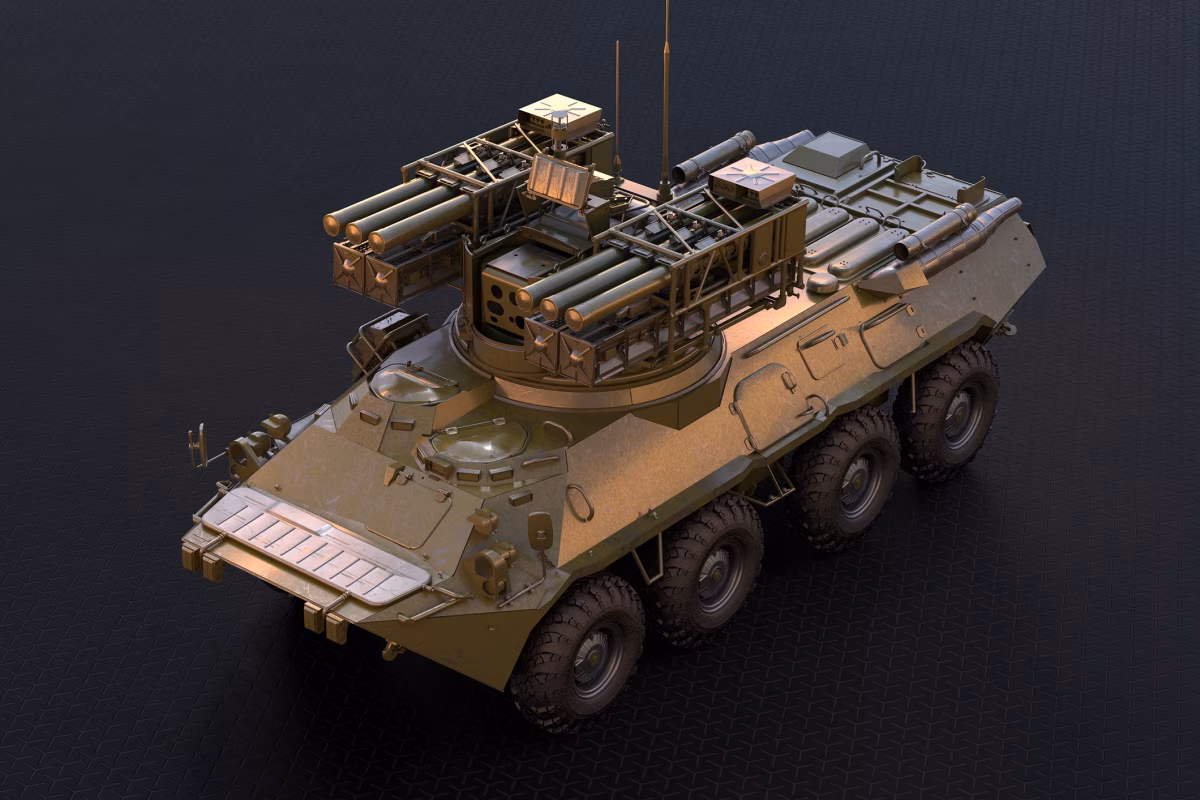

In its mobile configuration, the combat vehicle uses a BTR-82A wheeled armored personnel carrier as its base, paired with a command-and-control post mounted on a KamAZ truck chassis. A second vehicle variant using a BMP-2 infantry fighting vehicle chassis has also been shown in concept form. The Barnaul command-and-control system ties the components together, allowing the operator workstation inside the carrier to receive target data and authorize launches. The system can also operate in fully automatic mode, reducing engagement time.
The Two Missiles the Krona-E Carries
This is probably the most technically interesting part of the system. The Krona-E carries a mixed loadout of ten missiles in two types: six 9M340 (also referred to as Sosna-R) in transport-launch containers, and four 9M333 missiles. Each type uses a different guidance method, which is why Kalashnikov markets the combination as providing adaptability across different jamming environments.
The 9M340 is the newer of the two. It uses a semi-automatic laser beam-riding guidance system. After launch, a radio command brings the missile onto the line of sight, and then a laser beam guides it the rest of the way. This method is described as highly resistant to infrared countermeasures and electronic jamming because the missile is guided from behind, not homing on any emission from the target itself. Published maximum engagement figures for the 9M340 are up to 10 km in range and 5 km in altitude, though some trial reports cite a narrower effective engagement envelope for low-altitude drones specifically, around 1 to 6 km range and up to 3.5 km altitude for that threat category.
The 9M333 is older, descended from the Soviet Strela-10 family. It uses a three-band optoelectronic infrared homing seeker that can switch between channels to counter IR jamming. The seeker also includes a photo-contrast mode for targets that don't generate significant heat signatures. Engagement range for the 9M333 is up to 5 km at altitudes up to 5 km. The two missiles together give the system four independent guidance channels, which is the figure Kalashnikov cites for the system's simultaneous engagement capacity.
The laser-guided 9M340 doesn't home on any target emission, which means standard IR countermeasures have no effect on it.
| Missile | Guidance Type | Max Range | Max Altitude | Notes |
|---|---|---|---|---|
| 9M340 (Sosna-R) | Laser beam-riding | ~6.21 miles / 10 km | ~3.11 miles / 5 km | Immune to IR traps; radio command on initial trajectory |
| 9M333 | Three-band IR homing | ~3.11 miles / 5 km | ~3.11 miles / 5 km | Derived from Strela-10; includes photo-contrast mode |
How the Krona-E Detects and Tracks Targets
One of the more discussed aspects of the Krona-E is its sensor setup. The combat module does not carry an organic radar. Instead, it relies on its integral electro-optical suite (daylight camera plus thermal imager) as the primary search and fire-control sensor. This is a deliberate design choice. Radar emissions are detectable at range by passive warning systems on aircraft, which makes a radar-equipped system easier to locate and target. An optically guided system that doesn't actively radiate is harder to detect.
The tradeoff is obvious: optics have limitations in fog, rain, and smoke. To address this, the Krona-E is designed to receive external cueing from a detachable small-scale X-band radar unit called the Repeinik. This radar is portable and can be positioned separately from the combat vehicle, which both extends detection range and reduces the vehicle's own electromagnetic signature. According to technical details published around the IDEX 2025 debut, the Repeinik can detect a drone-sized target at ranges up to 5,000 meters. The combat vehicle can also draw targeting data from the wider air defense network it's plugged into, receiving tracks from Pantsir or S-400 batteries if they're operating in the same area.
Chassis Options and System Configuration
The modular design of the Krona-E is one of the things Kalashnikov has highlighted in export marketing. The combat module itself is self-contained, which means the turret assembly can be mounted on whatever self-propelled platform is available or installed as a fixed ground emplacement. The primary mobile variant uses a BTR-82A (the updated version of the BTR-80 family), which gives the system 8x8 wheeled mobility and amphibious capability. The secondary variant demonstrated uses a BMP-2 tracked chassis, which offers better cross-country performance.
According to the Kalashnikov Group's product page, a full Krona-E battery can include up to six combat vehicles, up to six dual-band radar complexes, and a single command-and-control post. That gives a deployed battery up to 60 missiles in ready-to-fire configuration and up to 216 additional 9M340 rounds in the resupply load. The use of existing vehicle platforms and missiles already in Russian inventory is a deliberate cost and logistics decision. It keeps per-unit cost lower, simplifies maintenance, and avoids supply chain problems tied to developing entirely new components.
Where the Krona-E Fits in Russia's Air Defense Picture
Russia's layered air defense architecture already has a capable short-range option in the Pantsir-S1, which combines twin 30mm autocannons with 57E6 missiles. So why add another short-range system? The answer involves both tactical logic and production economics. The Pantsir-S1 carries a detection radar, a fire-control radar, and an electro-optical system, plus its gun armament. That combination makes it significantly more expensive per unit and more complex to maintain. The Krona-E, by contrast, has no gun armament and no organic radar. It's simpler, likely cheaper to produce in volume, and harder to locate passively.
The two systems are also not meant to occupy the same tactical role. In a layered defense scenario, the Pantsir handles a broader threat spectrum including faster targets, while the Krona-E is positioned for the close-in intercept of lower and slower threats, specifically the medium-sized strike drones that have proven so disruptive to Russian rear-area infrastructure. The Krona-E's mobility also makes it useful for protecting moving column convoys, not just static sites, something the heavier Pantsir is less suited to in certain terrain conditions.
The Krona-E doesn't compete with the Pantsir. It fills the gap below it, taking care of the drone threat that's been hammering rear-area facilities.
If you're tracking Russian air defense developments and want to stay updated on how systems like Krona-E are being deployed and evaluated, this is a category worth watching closely. The drone threat that drove Krona-E's development isn't going away.
The "Old Tech" Debate
There's a legitimate criticism of the Krona-E worth engaging with honestly. Critics, particularly from Ukrainian defense analysis outlets, have pointed out that the system is largely built from existing components. The combat module traces directly back to the Sosna system that was first demonstrated in 2013 but never entered serial production. The 9M333 missile dates to the Soviet era. The BTR-82A chassis is decades old in its lineage. The argument is that Kalashnikov is marketing repackaged legacy technology as a new system.
There's truth in that. But it's also a somewhat incomplete picture. What's actually new about Krona-E is the integration: combining two missile types with different guidance methods under a single automated turret, tying that into a networked sensor and command architecture, and optimizing the whole package around the specific signature and flight profile of modern strike drones. The use of proven components isn't a weakness in itself. It's how you get a system through development in under two years and into field trials. The question that matters is whether the integration works, and that's exactly what the current trial program is supposed to answer.
What I've seen in past cases with Russian air defense programs is that the gap between a successful trial and actual operational fielding can be significant. The Sosna system is the obvious cautionary example: formally adopted in 2019, it has never been confirmed in operational service. Whether Krona-E avoids that fate probably depends as much on procurement funding and industrial capacity as on the system's technical performance.
What Happens Next
As of April 2026, the Krona-E prototype is in preliminary trials at a Russian test facility, with end users participating in the evaluation process. Kalashnikov has said the trial program will confirm final technical specifications, identify any design issues requiring correction, and produce a recommendation for formal adoption. There's no official timeline for serial production, though Kalashnikov's CEO was quoted in late 2025 describing the system as "highly ready" and being offered to customers. Some reporting suggests Kalashnikov was targeting 2026 for the start of production.
The export angle is also real. The system has been shown at IDEX and other international exhibitions with considerable marketing effort behind it. Countries that face persistent drone threats and don't have access to Western short-range air defense systems represent the obvious target market. Whether the Krona-E finds buyers will depend partly on how convincingly it performs in trials and partly on Russia's ability to deliver systems reliably given ongoing industrial pressures. For now, it's a system worth tracking. If you follow short-range air defense or counter-UAV technology more broadly, the Pax Ultima archive has additional coverage on related systems you might find useful.
