In 1957, the Tupolev Design Bureau quietly began work on a weapon that looked more like science fiction than aerospace engineering. The Tupolev Tu-130 was not a conventional aircraft. It had no engine of its own. It was designed to be launched on top of a ballistic missile, released near the edge of space, and then glide to a target up to 4,000 kilometers away at Mach 10. It was cancelled in 1960 before it ever flew. And almost nobody talks about it.
That's a shame, because the Tu-130 is one of the more fascinating dead ends in Cold War weapons history. It shows how both superpowers were wrestling with the same fundamental question in the late 1950s: if ballistic missiles are becoming the dominant nuclear delivery system, what role is left for aircraft? And what happens if you try to blend the two? The Tu-130 was the Soviet answer. It's worth understanding.
In this post I'll walk through what the Tu-130 actually was, how the design worked, why it got cancelled, and what the program left behind. If you're interested in cancelled Cold War weapons programs, Soviet aerospace history, or the origins of modern hypersonic glide vehicles, you're in the right place.
What Was the Tupolev Tu-130?
The Tu-130 began in 1957 under a program the Tupolev bureau designated "DP," short for "Dal'niy Planiruyushchiy," meaning long-range glider. The idea was to create an unmanned aircraft that would serve as the terminal stage of a ballistic missile strike system. Instead of the warhead arriving on a purely ballistic arc, the Tu-130 would be released at altitude and glide the rest of the way. That glide phase was the whole point.
The department responsible for this work, Department K, was run by Aleksey Tupolev, the son of the legendary Andrei Tupolev. This was a deliberate choice. The elder Tupolev recognized that Khrushchev's government was shifting its strategic priorities toward missiles and away from manned bombers. If the bureau was going to stay relevant, it needed to produce missile-related work. The Tu-130 was, in part, a political move as much as a technical one.
The Design: How a Glider Becomes a Nuclear Weapon

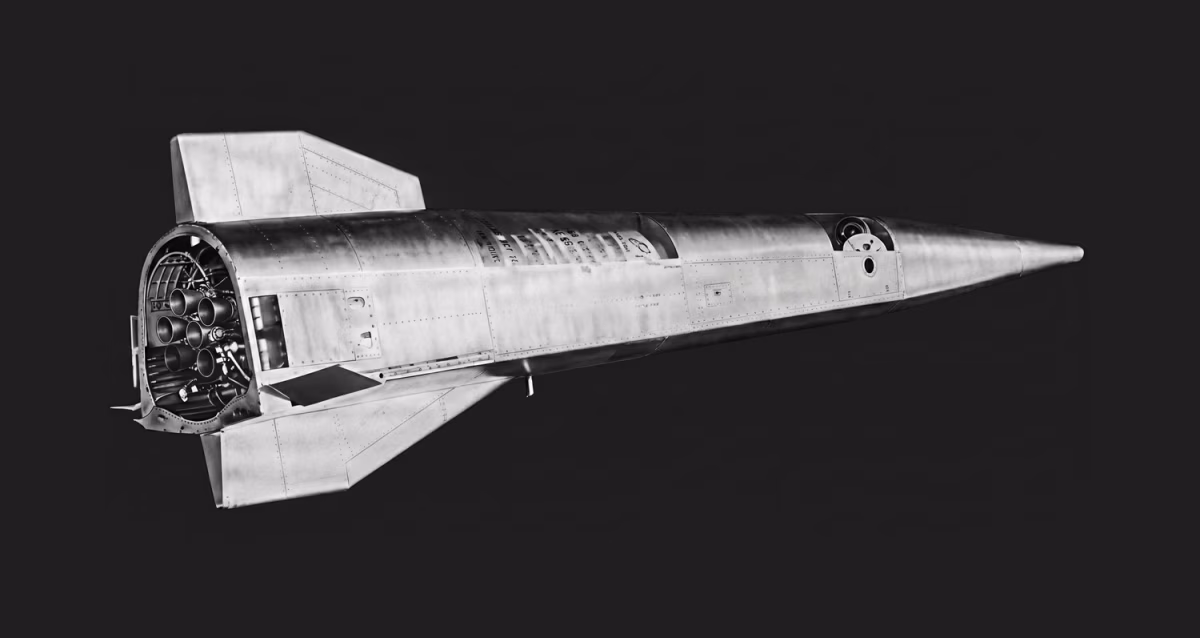

The Tu-130 airframe was compact and purpose-built for hypersonic flight. The final design had a length of 8.8 meters, a wingspan of just 2.8 meters, a height of 2.2 meters, and a total weight of around 2,050 kilograms. For context, that's roughly the size of a large pickup truck. Everything about the shape was optimized to survive the violent aerodynamic heating that comes with flying through the upper atmosphere at extreme speed.
The wing configuration was tailless, with a delta wing mounted low on the fuselage. The wing had a sweepback angle of 75 degrees along the leading edge, and elevons ran along the full span to provide pitch and roll control. A vertical stabilizer arrangement placed upper and lower fins at the rear of the fuselage rather than a single conventional tail fin. The whole airframe was constructed from stainless steel, and the nose section and all leading edges were made from graphite to handle the thermal loads generated at hypersonic speeds.
There was no onboard propulsion. The Tu-130 had no engine. Power for the flight control surfaces and onboard electronics came from chemical power sources and compressed air cylinders. The thermonuclear warhead required active cooling, so a dedicated onboard cooling system was included. The airframe itself was not cooled. The engineers instead designed the structure to absorb the thermal stresses through material selection and geometry. At the final stage of flight, the vehicle would pitch into a dive toward the target, and the warhead would detonate on a signal from an altimeter.
The Tu-130 had no engine. It was designed to be fast enough that it didn't need one.
How It Was Supposed to Work
The launch system was the key to the whole concept. The Tu-130 would be mated to a modified medium-range ballistic missile, initially the R-5 or R-12, as the carrier vehicle. The missile would boost the glider to an altitude of 80 to 100 kilometers, then release it. At that point, the Tu-130 would be traveling at hypersonic speed and would begin its guided glide toward the target.
The trajectory correction happened through the aerodynamic control surfaces. Once released from the booster, the vehicle would perform a one-time guidance correction and then fly a gliding path toward the designated target. According to the design parameters, the Tu-130 could reach a target 4,000 kilometers away and hit a speed of Mach 10 during the glide phase. By the later stages of the program, Tupolev's team had also been developing a proprietary three-stage rocket booster of their own. Had that been used, the range would have extended dramatically, to somewhere between 9,000 and 12,000 kilometers, putting virtually any target on earth in reach.
The strategic logic behind this design was straightforward. Purely ballistic missiles follow a predictable arc. Air defense systems in the late 1950s, while primitive by modern standards, were getting more capable. A weapon that could change its trajectory mid-flight, and that flew through a combination of near-space and upper atmosphere rather than a clean ballistic arc, would be much harder to intercept or predict. In that sense, the Tu-130 was addressing the same problem that modern hypersonic glide vehicles are designed to solve. It was just doing so sixty years earlier.
Testing: Wind Tunnels, Artillery Guns, and Drop Tests
The Tu-130 program was not purely theoretical. The Tupolev bureau put serious engineering resources into it over the roughly two years of active development. Various aerodynamic configurations were tested before the team settled on the tailless delta design. The options investigated included symmetric layouts, asymmetric designs, canard configurations, and multiple variations of conventional tail arrangements. All of them were evaluated against the requirements for hypersonic stability and thermal survivability.
Scale models were tested in wind tunnels at the Central Aerohydrodynamic Institute, including at supersonic speeds. To test performance at higher velocities, models were also fired from artillery guns and gas-dynamic guns. That approach, which sounds almost absurdly low-tech in comparison to the sophisticated vehicle being designed, was actually a practical way to gather aerodynamic data quickly at speeds that wind tunnels could not yet easily replicate. At the Gromov Flight Research Institute, drop tests were conducted where scale models equipped with solid-fuel boosters were released from Tupolev Tu-16 bombers and allowed to fly freely. During those tests, speeds of up to Mach 6 were recorded.
By 1959, the design had been fixed and detailed engineering work on the prototype began. In 1960, the first full-scale airframe was completed and the team moved on to equipping it with electronics and preparing it for mating with a modified R-12 missile carrier. By all accounts from sources that documented the program, the technical progress was real and the bureau was genuinely close to a first launch attempt.
Why the Tu-130 Got Cancelled
On February 5, 1960, a resolution from the Soviet Council of Ministers terminated the entire DP program. The Tu-130 was cancelled not because it had failed technically, but because the strategic environment had shifted under it. The early Soviet ICBM program, specifically around the R-7 and subsequent missiles, had progressed faster than expected. Intercontinental ballistic missiles could reach any target on earth without the complexity of a gliding terminal stage. From the government's perspective, the Tu-130's elaborate solution was answering a question that ICBMs had already made obsolete.
There's also a political dimension to the cancellation that doesn't get discussed much. By 1960, Khrushchev was convinced that missiles were the future of Soviet military power, and he was actively hostile to programs associated with manned aircraft and complex aviation systems. Several major Soviet aircraft projects were cancelled around the same time. The Tu-130 fit into a broader pattern of the Kremlin redirecting defense resources away from aviation and toward ballistic missiles. The bureau had anticipated this, which is partly why they had framed the Tu-130 as a missile system rather than an aircraft program from the start. It wasn't enough.
The completed and partially completed airframes were either scrapped or transferred to the design bureau of Vladimir Chelomey, a rival who was working on his own missile-related projects. If you're looking for a moment that captures how Cold War weapons development actually worked, the fate of the Tu-130 is a good example. Perfectly viable hardware, meeting its design goals, killed not by technical failure but by a government decision made at the strategic level.
The Tu-130 wasn't cancelled because it failed. It was cancelled because ICBMs made the problem it solved feel less urgent.
What the Program Left Behind
What happened to all the research? It didn't disappear. The aerodynamic data, the thermal management work, the structural engineering for high-speed reentry conditions, all of it was folded into the Tupolev bureau's next major project in the same space: the Zvezda program, also designated the Tu-136. Zvezda was an attempt to develop a manned Soviet spaceplane, roughly analogous to what the Americans were pursuing with the X-20 Dyna-Soar program. The hypersonic research that came directly out of Tu-130 development was the foundation Zvezda was built on.
In my reading of this period, it's striking how much the Tu-130's legacy shows up in later Soviet aerospace. The tailless delta configuration, the stainless steel structural approach, the graphite leading edges, these were not common solutions in the late 1950s. Working them out on the Tu-130 gave the bureau knowledge it would not otherwise have had. The programs that benefited were not always obvious, and the connection is rarely made explicit in English-language sources.
| Attribute | Tu-130 (Soviet) | X-20 Dyna-Soar (American) |
|---|---|---|
| Program start | 1957 | 1957 |
| Intended role | Unmanned nuclear strike | Manned reconnaissance and strike |
| Speed target | Mach 10 | Up to Mach 20 |
| Propulsion | Ballistic missile booster only | Titan rocket booster |
| Cancelled | February 5, 1960 | December 10, 1963 |
| Legacy | Zvezda/Tu-136 spaceplane research | X-37B orbital vehicle lineage |
The Tu-130 and Modern Hypersonics
The concept the Tu-130 explored, a maneuverable glide vehicle released from a rocket booster that follows an unpredictable trajectory to its target, is exactly what modern hypersonic glide vehicles do. Russia's Avangard hypersonic glide vehicle, which entered operational service in 2019, uses a boost-glide profile that is conceptually identical to what the Tupolev team was designing in 1957. The technology gap between the Tu-130 and the Avangard is enormous. The fundamental strategic logic is the same.
The Americans were working on the same thing with the Dyna-Soar. In the 2000s, the US Conventional Prompt Global Strike program revisited boost-glide vehicles as a way to deliver precision conventional strikes anywhere in the world within an hour. China's DF-ZF, which Western analysts first observed in testing around 2014, uses the same basic concept. A weapon that rides a rocket to the edge of space and then glides unpredictably to a target is hard to intercept with conventional missile defense architectures, which are optimized for purely ballistic trajectories.
If you want to understand why boost-glide hypersonic weapons are treated as such a serious challenge for modern air defense, the Tu-130's design logic explains it as clearly as anything written in 2026. The problem was understood in 1957. Solving it at the material science and guidance level took another six decades.
The Bigger Picture
The Tupolev Tu-130 is one of those programs that rewards careful attention precisely because it's obscure. It was not a failure. It was a technically credible early attempt at a weapons concept that the rest of the world is now spending billions to field. It was cancelled for political and strategic reasons that had nothing to do with whether the engineering worked. And the knowledge it generated fed directly into subsequent Soviet aerospace programs that did have a lasting impact.
If you found this useful and want to keep following programs from this era, the Tu-121, Tu-123, and the Zvezda/Tu-136 spaceplane are natural next reads. Each one picks up a different thread from the same mid-1950s moment when the Soviet aerospace industry was scrambling to figure out what the missile age meant for aircraft design. Subscribing to Pax Ultima will make sure you don't miss the next deep dive.
