The Chengdu J-20 is China's answer to a question Western air forces have been asking for decades: when will Beijing field a true fifth-generation fighter? The answer arrived in 2017, when the J-20 entered operational service with the People's Liberation Army Air Force (PLAAF). Since then, it has been upgraded, produced in growing numbers, and studied intensely by defence analysts around the world. If you want to understand modern air power competition in the Indo-Pacific, this aircraft is the right place to start.
What Makes a Fighter "Fifth-Generation" in the First Place
Before judging the J-20, it helps to know what the label actually means. Fifth-generation fighters are defined by a combination of features working together: all-aspect stealth (low radar cross-section from multiple angles), internal weapons carriage, advanced sensor fusion, supercruise capability or at least high-speed dash performance, and highly networked avionics that give the pilot a clear picture of the battlespace without relying on external radio calls.
The U.S. F-22 Raptor was the first aircraft to check all of those boxes when it entered service in 2005. The F-35 followed with a different emphasis, trading some raw performance for more advanced sensors and greater versatility across services. Russia's Su-57 claims the same generation label, though its stealth shaping is widely considered less refined. The J-20 is now firmly in this company, at least by design intent.
The J-20's Design: What Makes It Different [/Heading]

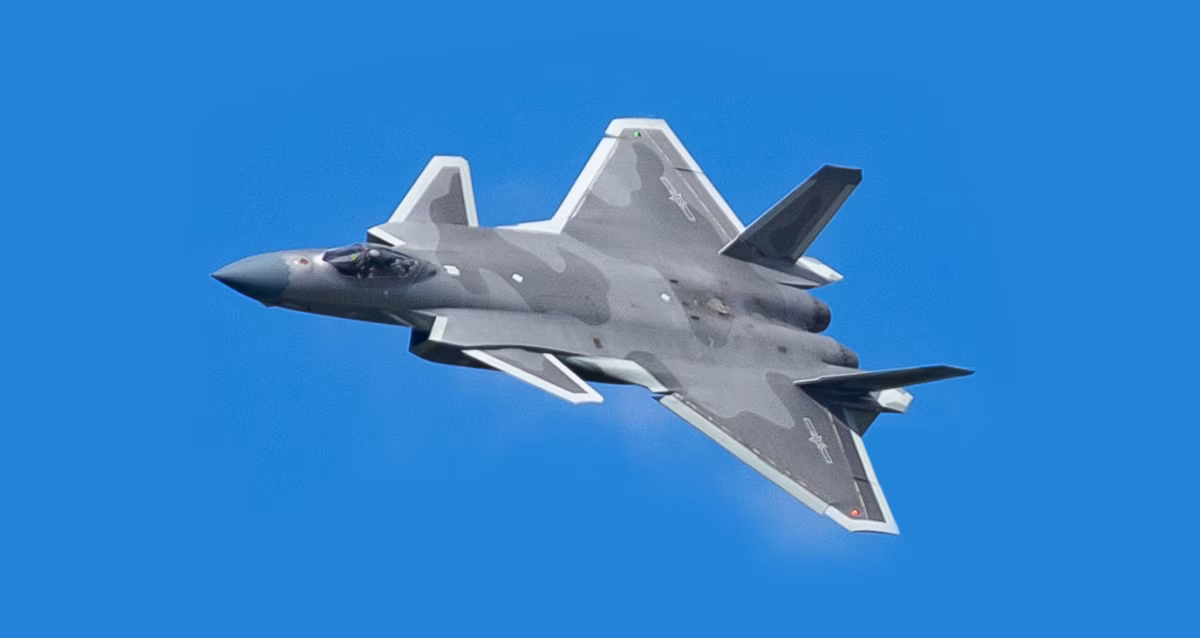

The J-20 is a large aircraft by fighter standards, noticeably longer than an F-22. Its overall configuration is a canard-delta layout, meaning it has small forward-mounted canard fins plus large delta wings. That layout provides excellent agility and lift at high speeds but creates a stealth trade-off: canards produce radar reflections from certain angles that a pure tailless delta or blended wing design avoids. This is one reason many analysts describe the J-20 as optimised primarily for frontal stealth rather than all-aspect stealth.
The nose and forward fuselage are shaped carefully to reduce radar return head-on, which matters most in a beyond-visual-range (BVR) engagement where the aircraft is closing toward a threat radar. The sawtooth edges on the canopy, intake edges, and weapons bay doors all follow aligned angles, a classic stealth technique used on the F-35 and B-2. The aircraft has two internal main weapons bays along the centreline and two smaller lateral bays for short-range missiles.
Engines: The Problem That Has Followed the J-20 Since Day One
This is where the J-20's story gets complicated. The aircraft was designed around a Chinese-developed engine, the WS-15, that has taken much longer to mature than planned. For years, production J-20s flew with Russian AL-31F engines, the same powerplant used in the Su-27 family. That engine was never intended for a fifth-generation airframe. It lacks the thrust-to-weight ratio and low-observable nozzle design that the WS-15 is meant to provide.
As of the mid-2020s, a transitional engine, the WS-10C, has been fitted to newer J-20 variants. It is a significant improvement over the AL-31F but still falls short of the WS-15's projected performance. The WS-15 has reportedly been flight-tested in J-20 airframes, and production-standard engines are expected to be the standard fit in newer batches. Until that happens at scale, the J-20's sustained supersonic performance and overall engine reliability remain questions worth watching.
A stealth fighter with a second-tier engine is still a major capability. But the gap between a WS-10C and what the WS-15 promises is the difference between a serious threat and a transformative one.
Sensors, Avionics, and Weapons
The J-20 carries an Active Electronically Scanned Array (AESA) radar, the KLJ-5, in its nose. AESA radars can simultaneously track multiple targets, switch frequencies rapidly to defeat jamming, and operate in low-probability-of-intercept modes that make them harder for an adversary to detect. This puts the J-20 broadly on par with F-35 and Typhoon radar technology, though the specifics of performance remain classified on all sides.
The aircraft also features an electro-optical targeting system (EOTS) under the nose, similar in concept to the F-35's, and an electro-optical distributed aperture system (EODAS) embedded in the airframe for 360-degree situational awareness. These sensors feed into a wide-area display inside the cockpit. The pilot wears a helmet-mounted display system (HMDS) for off-boresight targeting. By all credible accounts, the sensor suite is genuinely modern.
For weapons, the main internal bays carry PL-15 beyond-visual-range missiles, which have a claimed range exceeding 200 km and an active AESA seeker. The lateral bays carry PL-10 short-range missiles with high off-boresight capability. Both missiles are considered serious threats to fourth-generation aircraft and to tankers, AWACS, and other high-value platforms that Western air forces depend on.
J-20 vs F-22 and F-35: How They Actually Compare
The honest answer is that direct comparison is difficult because so much performance data on all three aircraft is classified. What we can do is compare publicly known design features and stated doctrinal roles. If you want to go deeper on this topic, the open-source defence analysis community, including outlets like The War Zone, RAND publications, and CSIS, has produced some of the most rigorous unclassified assessments available.
| Feature | Chengdu J-20 | F-22 Raptor | F-35A Lightning II |
|---|---|---|---|
| Primary role | Air superiority / BVR strike | Air superiority | Multi-role / strike |
| Stealth optimisation | Primarily frontal | All-aspect | All-aspect |
| Engine (current) | WS-10C (WS-15 in development) | F119 (supercruise capable) | F135 (no supercruise) |
| Internal weapons | 4 bays (2 main, 2 lateral) | 3 bays | 1 main bay + 2 lateral |
| AESA radar | Yes (KLJ-5) | Yes (APG-77) | Yes (APG-81) |
| Operational since | 2017 | 2005 | 2015 |
The F-22 is still widely considered the most capable pure air-to-air fighter ever built, largely because of its combination of supercruise, thrust-vectoring, all-aspect stealth, and exceptional energy manoeuvring. The J-20's size and canard configuration suggest a different operational concept: using stealth and long-range missiles to engage targets before getting into a close-in turning fight, rather than winning that fight if it happens. That is not necessarily a weakness. It reflects a doctrine built around denying the adversary's airborne assets, particularly tankers and AWACS, at range.
Against the F-35, the comparison is more nuanced. The F-35 was built for a different mission profile, with deep sensor integration and multi-domain networking as its core strengths rather than raw kinematic performance. The J-20 likely has the edge in speed and possibly range. The F-35 likely has the edge in sensor fusion maturity and in interoperability with allied forces. Neither aircraft is simply "better." They are optimised differently.
How Many J-20s Does China Actually Have?
Production estimates vary, but by 2025 credible open-source analysts, including the U.S. Department of Defense's annual China Military Power Report, indicated that several hundred J-20s had been produced, with the number growing steadily. China's production infrastructure for the J-20 has expanded at Chengdu Aircraft Corporation's facilities, and satellite imagery has tracked aircraft on the flightline there for years.
For context, the U.S. built 187 F-22s before halting production in 2011, a decision now widely regarded as a strategic mistake. If J-20 production continues at its current pace, China could field more fifth-generation airframes than the U.S. has F-22s within a few years, if it has not already. F-35 numbers change that calculus significantly, but the J-20 fleet size is no longer a footnote.
What the J-20 Actually Means for Regional Air Power
The J-20 changes what any adversary, including the U.S. and its allies, has to plan for when thinking about air operations in the western Pacific. Before it entered service, the PLAAF was largely a fourth-generation force, capable but manageable with sufficient F-22s and F-35s in theatre. The J-20 complicates that picture. It can threaten high-value assets that previous Chinese fighters could not reach without being destroyed first.
In a Taiwan scenario or a South China Sea confrontation, the J-20's most dangerous role is probably not fighter-vs-fighter combat. It is the ability to threaten the tankers and AWACS aircraft that extend the reach and situational awareness of Western air forces. Knock out those enabling platforms, and the effectiveness of everything else in the coalition degrades sharply. That is the mission the J-20's range, stealth, and long-range missiles are designed for.
If you follow defence policy and want to understand the broader context around PLAAF modernisation and Indo-Pacific strategy, the CSIS China Power Project is one of the best free resources available. They track capability development and publish accessible analysis regularly.
What We Still Don't Know About the J-20
A lot of the most important questions about the J-20 remain genuinely unanswered in open sources. How good is its radar cross-section from the beam and rear aspects, not just the nose? Has the WS-15 reached production standard, and what does it do to the aircraft's top speed and sustained supercruise? How mature is the sensor fusion software? What is the actual reliability record in PLAAF service? These are not small details. They are the difference between an aircraft that is genuinely competitive with an F-22 and one that is a serious but beatable threat.
A common mistake I notice in online discussion is treating published specs and claimed ranges as settled fact. Chinese state media and the PLAAF have strong incentives to present the J-20 as more capable than it may be in practice, and Western analysts sometimes have incentives in the other direction. The honest position is to say: this is a credible, modern, and increasingly numerous fifth-generation fighter with some known weaknesses and several unknowns that matter enormously.
The J-20 does not need to match the F-22 to be a strategic problem. It just needs to be good enough to complicate the planning assumptions Western air forces have relied on for twenty years.
The Bottom Line on the Chengdu J-20
The Chengdu J-20 is real, operational, and produced in meaningful numbers. It has genuine fifth-generation features, a capable sensor suite, and weapons that can threaten aircraft previously considered safe from Chinese air power. Its known weaknesses, primarily engine maturity and some stealth trade-offs from the canard layout, are being addressed incrementally. By the time the WS-15 is fully integrated at scale, the gap between the J-20 and the best Western fighters will be smaller than it is today.
If you want to keep up with how this aircraft develops, the best sources are the annual DoD China Military Power Report (free to download), The War Zone's open-source analysis, and the CSIS China Power Project. They are not perfect, but they are far more rigorous than most of what circulates on social media. Subscribe to one of them, and you will have a much clearer picture of where things stand as the J-20 continues to evolve.
